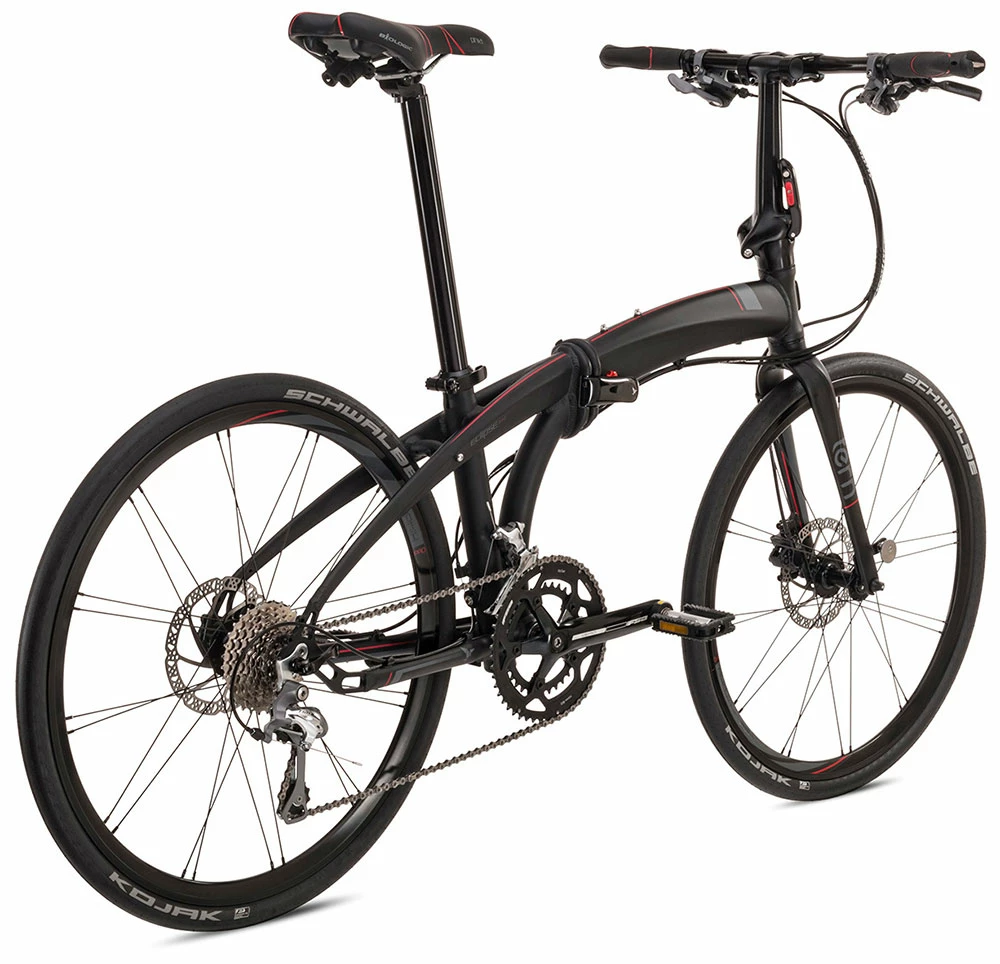

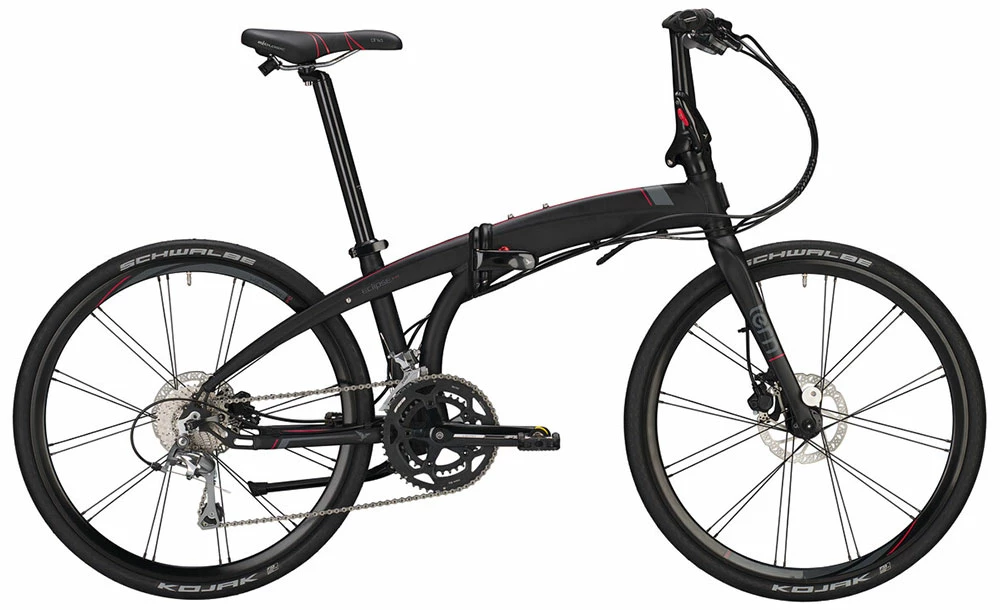

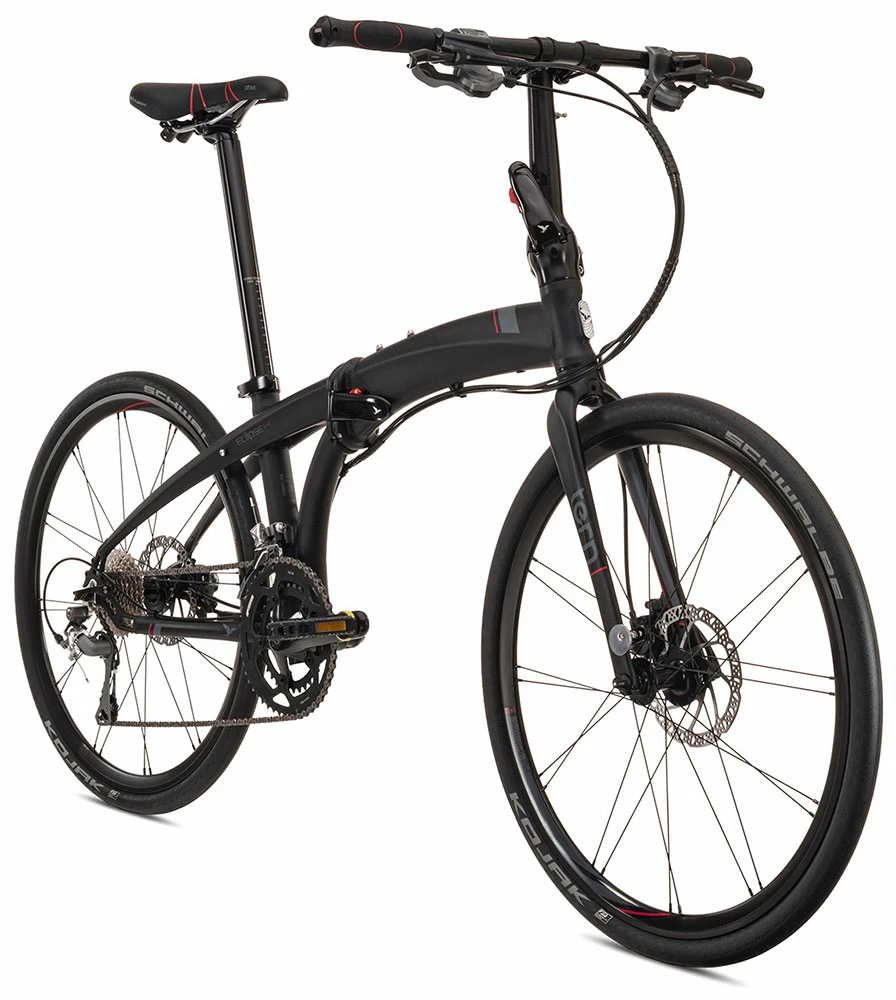

Tern Eclipse P20

The Tern Eclipse P20 is a high-performance road bike that folds down fast. With custom 26” Rolf Paired Spoke wheels, a 250 mm Physis™ 3D handlepost, and performance-tuned frame geometry, the Eclipse P20 is engineered for speed. It sports a stealth black finish, hydraulic disc brakes, and BioLogic Arx grips.

---

Features – Tern Eclipse P20

• Kinetix™ Pro Disc 26” wheels with patented Rolf Paired Spoke design
• Shimano Tiagra drivetrain for 20 speeds and precise, responsive shifting
• Tektro Auriga hydraulic disc brakes for all-weather stopping power
• Adjustable VRO handlebar stem to fine tune your ride position
• High performance Kojak road tires with puncture protection
• Folds compactly in 10 seconds for storage and transport
• Folding Size: 38 x 90 x 81 cm
• Max load weight: 105 kg
• Suggested rider height: 148 – 195 cm

---

Technologies

OCL™ Frame Joint – ADVANCED FOLDING TECHNOLOGY
The key to any folding bicycle is the main folding joint. Done well, it locks the two halves of the frame together without any hint of movement or sound. It should be easy to operate and work flawlessly year after year. The OCL Joint does all of these things and is a new reference in folding frame technology.

• Stronger by Design
  Making the hinge taller and moving the pivoting surfaces outward from the center axis more than doubles overall strength and stiffness. It’s a difference you’ll feel from your very first ride.
• Smooth Operation
  The patented design puts four igus® bearings between the aluminum and stainless steel moving parts so the folding action is always smooth and friction-free.
• Interlocking Joint
  The front and rear joint surfaces lock together to eliminate torsional movement.
• Easy to Use
  Large rounded surfaces on the lever and joint bodies are easy on your hands and allow good leverage for easy operation.
• Doubly Safe
  Close the lever and the AutoLok automatically locks in place, for extra, easy security.
• Floating Point Technology
  Patented technology allows the lever to fold flat and brace against the joint for protection in transit.
• Serviceable
  Good things are built to last and that’s why the OCL Joint is designed to be dealer serviceable. We keep every part in stock and if your bearings ever wear out, your dealer can replace them in a few minutes.
• Precision-Machined
  A machining tolerance of only 50 microns ensures a tight fit and eliminates looseness and rattling.
• Stainless Steel Hardware
  Cold-worked stainless delivers the durability and reliability needed for daily riding in all weather conditions.

TARSUS™ FORK – HYDROFORM MEETS FUNCTION
Utilizing a single hydroformed tube mated to a precision-machined steerer, the Tarsus delivers superior strength in a shape that matches the sophisticated lines of the Verge and Eclipse frames.

PHYSIS™ 3D HANDLEPOST – THE NEW BENCHMARK
Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.

SYNTACE VRO STEM – FIND YOUR FIT
Your bike should adapt to fit you―not the other way around. This adjustable stem allows you to position your handlebars further, for a more stretched and aggressive riding position, or up higher for increased comfort.

TEKTRO HYDRAULIC DISK BRAKES – STOPPING POWER
When you’re going fast, in all sorts of weather conditions, you need brakes that work, and work well. Tektro hydraulics fit the bill with sure, single-finger stopping power.

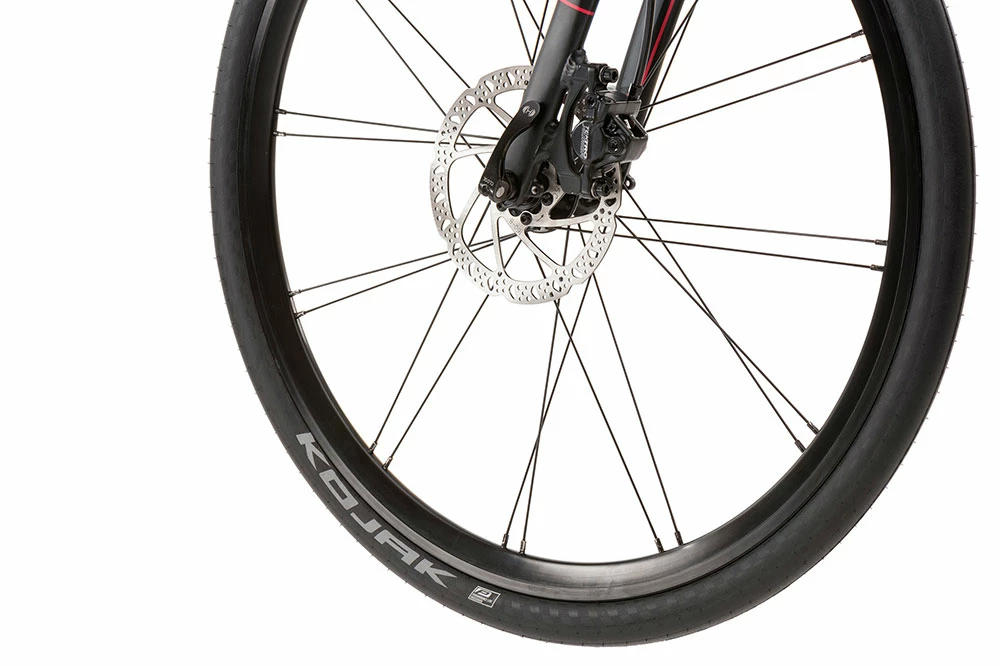

KINETIX™ PRO DISC WHEELS – SPEED ALERT
Paired-spoke design allows us to build a strong wheel with fewer spokes—resulting in a lightweight, aerodynamic wheel for fast riding.

SCHWALBE KOJAK TIRES – FAST AND LIGHT
Light and fast tires with enough volume to keep things comfy. Kojak’s are ideal for fast commutes or longish weekend rides.

SHIMANO TIAGRA 2 X 10 DRIVETRAIN – DO IT ALL
To give you awesome climbing gears while maintaining downhill speed, we pair an 11-32T cassette, compact double 50/34T crankset, and Shimano Tiagra derailleurs.

---
